Good Selling Elbow Mould Directly Sale for Sale
Product details of the elbow mould
Product Information
Spark Mould assures that the basic materials that we use in the production process are of premium quality. The product has a dominant influence in this field and is praised by numerous customers. elbow mould has been spreaded into the global market for its high quality.
Foldable Core Pulling Mechanism 1
The foldable core is a very representative mold slider mechanism, mainly for the internal thread or annular boss of the plastic part. We designed 9 exquisite parts to combine the foldable core. The contraction and expansion of the slider are achieved through the control of the oil cylinder.
Foldable Core Pulling Mechanism 2

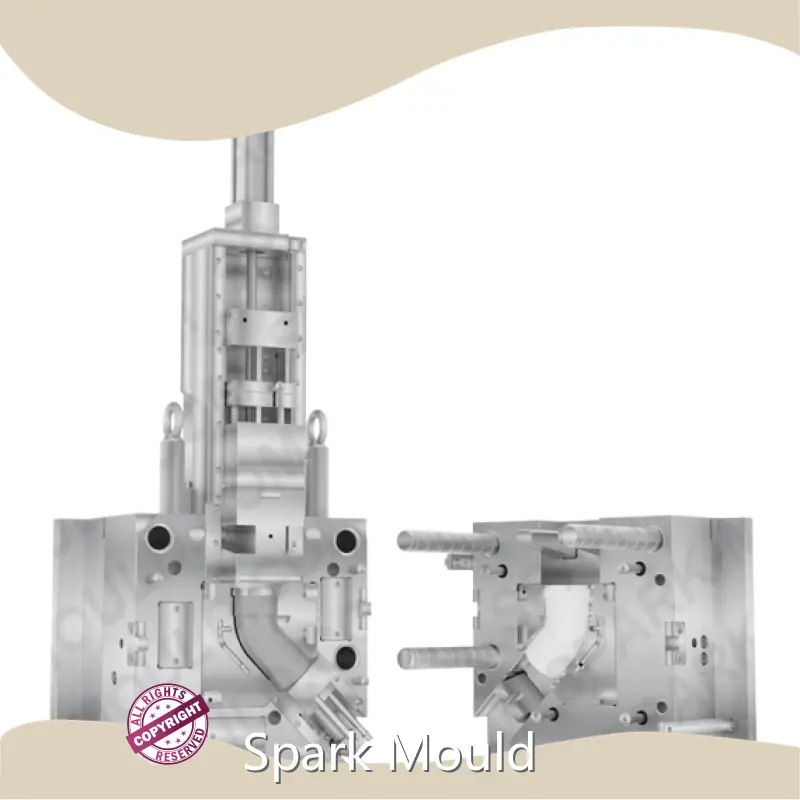

The core-pulling structure of this 45-degree elbow is cleverly designed, consisting of two precise arc blocks and two guide rails. The mechanism is controlled by the oil cylinder, allowing the arc block to move flexibly along the guide rails. The processing accuracy of the arc slider needs to be very high because the inside of the pipe fitting is smooth and curved.
Mold Trial Video
During the product ejection process, the slide at the O ring shrinks first. Then it is separated from the product along with the slide inside the elbow.
Company Feature
• We have been dedicated to the manufacturing of Plastic Pipe Fittings Mold for about years, and have become the leading enterprise in the industry. This enables us to introduce and operate a complete set of production equipment, and achieve intelligentization and standardization.
• Our company has a group of experienced and long-term professional and technical personnel and management team in the relevant fields of the industry, which provides favorable conditions for our development.
• Our company enjoys the superior geographical position with convenient transportation.
Hello, thank you for your interest in this site! If you have any needs, please call us. Spark Mould looks forward to working together with new and old customers to create a bright future!
