Elbow Fitting Mould for Industry Factory Direct Supply

Product details of the elbow fitting mould

Product Overview

The production of Spark Mould elbow fitting mould is stringently monitored. You can make special adjustments on our elbow fitting mould. It has good economic value and broad market acceptance.

Product Introduction

Compared with other similar products in the market, Spark Mould's elbow fitting mould is provided with the following outstanding advantages.

Wys mold slider assembly

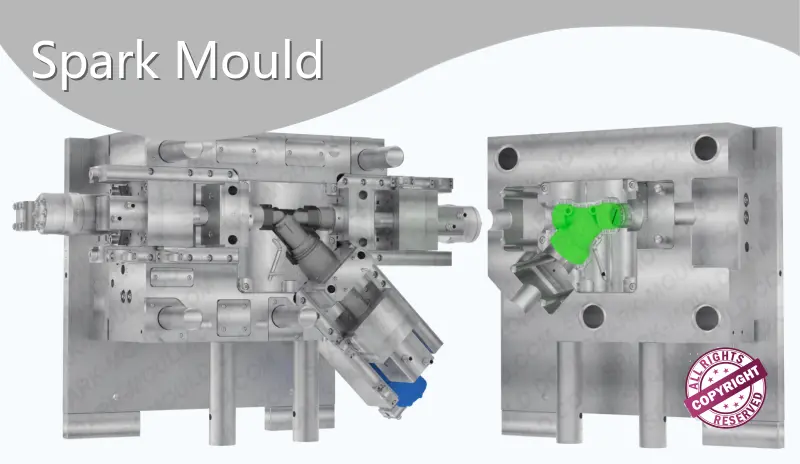

We designed 3 sets of slider assemblies in this wys mold. Each slider assembly has a hydraulic motor and a hydraulic cylinder. The hydraulic motor drives the unscrewing of the threaded slider, while the hydraulic cylinder drives the entire slider assembly to disengage and reset the product. In the figure below, we show the structure of this slider assembly.

Wys mold opening and closing action

When the mold is opened, the inclined guide column on the fixed mold drives the threaded slider seat to move back a certain distance. The hydraulic motor loosens the thread to make the threaded slider separate from the product. Then the hydraulic cylinder drives the entire slider assembly to separate from the product.

Mold Trial Video

Company Information

As a well-established company, Spark Mould Technology Co., Ltd. mainly specializes in elbow fitting mould. Our customers seldom complain about quality of elbow fitting mould. Spark Mould Technology Co., Ltd. strives for realization of its strategic objective to build itself into the most globally competitive elbow fitting mould enterprise. Get price!
Look forward to inquiries from customers in various industries
