Worldwide Pipe Fitting Mould Made in China for Industry

Product details of the pipe fitting mould

Product Information

The design of Spark Mould pipe fitting mould caters to the foreign markets. It will undergo strict tests for quality before loading. The product is extensively used and promoted in the field.

Injection Mold Structure

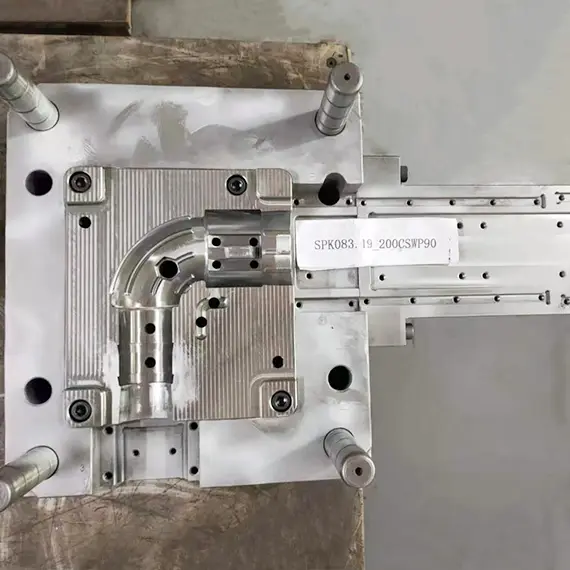

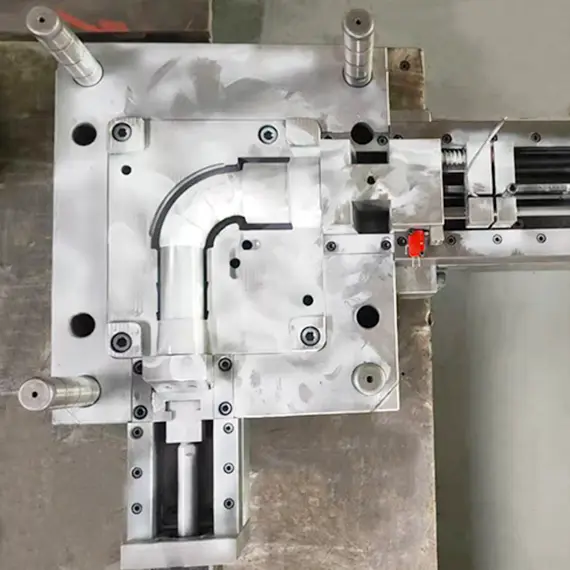

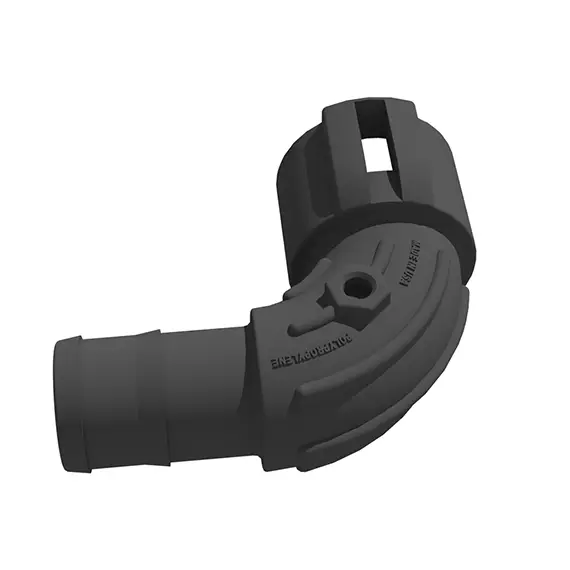

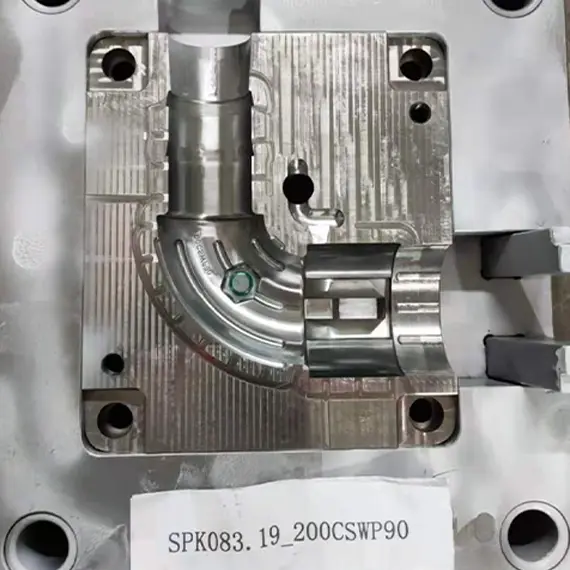

The core of this 90-degree quick connector injection mold is the foldable core mechanism. Its processing and debugging are somewhat difficult. The basic structure of the foldable core is shown in the figure below. The whole mold has two sets of core pulling mechanisms, which are controlled by two hydraulic cylinders respectively.

Hydraulic side core pulling mechanism

Using pressure oil as the power, a special core pulling hydraulic cylinder is configured on the mold, and the piston of the hydraulic cylinder moves back and forth to achieve lateral parting, core pulling and resetting. The action is relatively stable, the pulling force is large, the core pulling distance is long, and the time sequence of core pulling can be freely set according to needs.

Company Advantage

• The place where our company is located has a good view. It also owns a convenient transportation for delivery.
• Spark Mould has a solid team of professional skills, with modern awareness and superb skills to provide customers with strong technical support.
• With the concept of benefiting the people and gaining win-win with the public, we focus on creating excellent services that guide us to move forward all the way with the initial heart.
Welcome to Spark Mould. If you have any questions when selecting Plastic Pipe Fittings Mold, feel free to consult us. We will reply you patiently.
