Spark Mould Plastic Pipe Fitting Mold Plastic Pipe Fitting Moldquality Assurance

Product details of the plastic pipe fitting mold

Product Description

The innovative design of Spark Mould plastic pipe fitting mold makes it more competitive. The product, meeting with the strict quality standards, has a long service life. Spark Mould Technology Co., Ltd. has gained rapid development in both product and market thanks to more than decade years of product R&D and production experience.

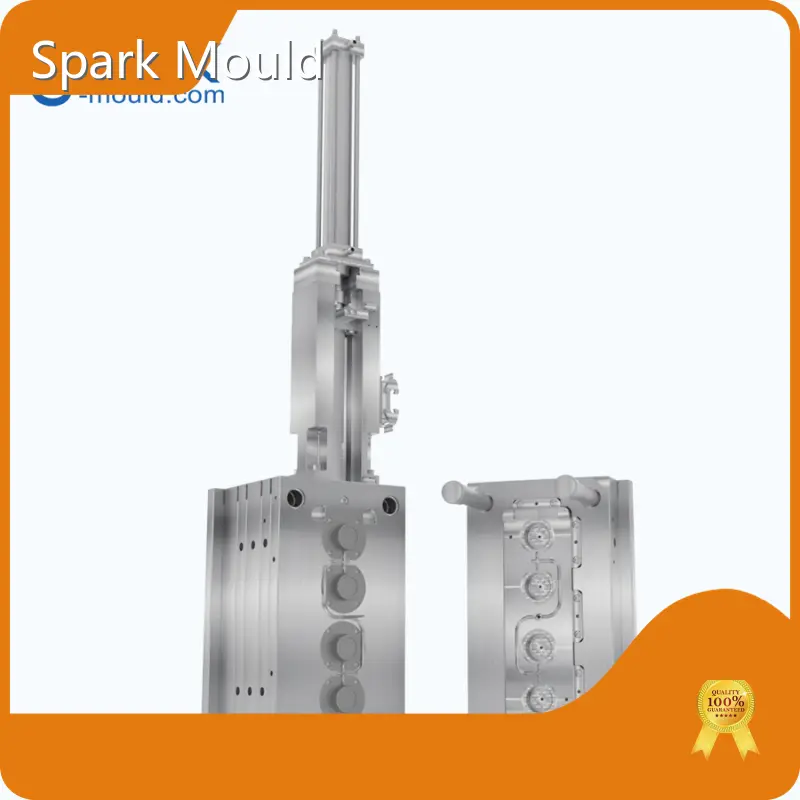

Automatic unscrewing thread mechanism with rack drive

The meshing transmission between the rack and the gear is the core part of this mold. The rack drives the gear to rotate through linear motion, thereby realizing the rotation of the threaded core.

When designing the mold, it is necessary to consider parameters such as transmission ratio, modulus, pressure angle, etc. to ensure the smoothness and accuracy of the transmission.

Mold Design Display

Mold Trial Video

The hydraulic cylinder drives the rack to move linearly. The rack drives the thread core to rotate through the gear meshing with it. At the same time, during the rotation process, the thread core moves axially in the opposite direction of the plastic part thread and gradually separates from the threaded part of the plastic part.

Company Advantage

• Spark Mould is located in a place with traffic convenience. There are highways, railways, and airports.
• We have been dedicated to the manufacturing of Plastic Pipe Fittings Mold for about years, and have become the leading enterprise in the industry. This enables us to introduce and operate a complete set of production equipment, and achieve intelligentization and standardization.
• Our company attaches great importance to talent cultivation. Currently, we have established a staff team of high quality and high efficiency. It is the effective guarantee for the long-term development.
Leave your contact information and Spark Mould has coupons of samples for you.
