Pvc Pipe Fitting Mold Made in China for Sale
Product details of the pvc pipe fitting mold
Product Information
The production of Spark Mould pvc pipe fitting mold is of high efficiency with the help of advanced production equipment. This product provides good reliability and excellent performance at low cost. Spark Mould Technology Co., Ltd. constantly improve the production process and improve the control of product quality.
Foldable Core Pulling Mechanism 1
The foldable core is a very representative mold slider mechanism, mainly for the internal thread or annular boss of the plastic part. We designed 9 exquisite parts to combine the foldable core. The contraction and expansion of the slider are achieved through the control of the oil cylinder.
Foldable Core Pulling Mechanism 2

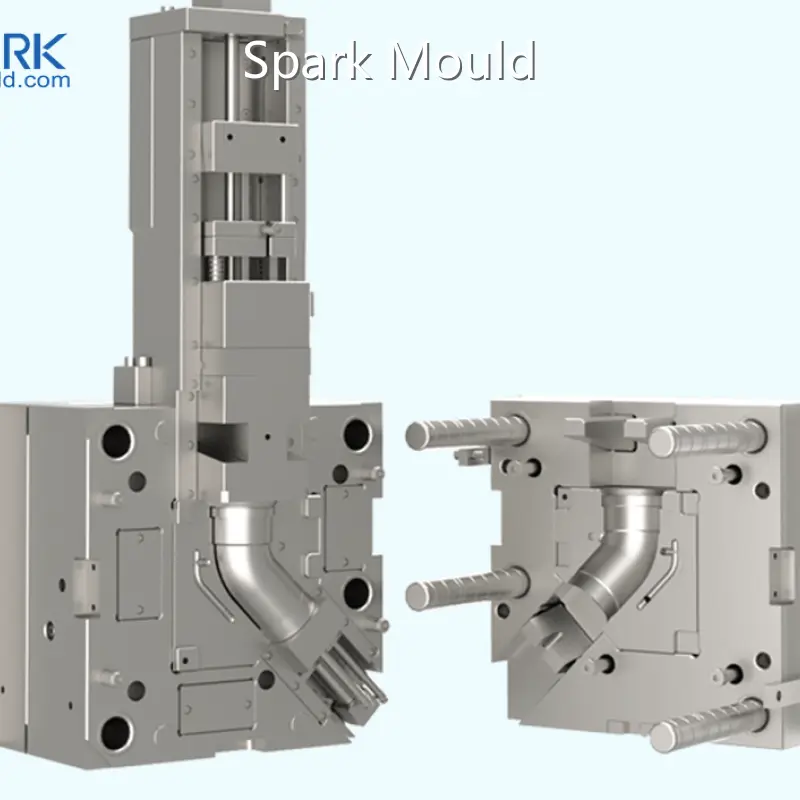

The core-pulling structure of this 45-degree elbow is cleverly designed, consisting of two precise arc blocks and two guide rails. The mechanism is controlled by the oil cylinder, allowing the arc block to move flexibly along the guide rails. The processing accuracy of the arc slider needs to be very high because the inside of the pipe fitting is smooth and curved.
Mold Trial Video
During the product ejection process, the slide at the O ring shrinks first. Then it is separated from the product along with the slide inside the elbow.
Company Feature
• Our company develops different solutions according to the different requirements of customers, and proposes the most effective service measures to help customers solve problems.
• We have been dedicated to the manufacturing of Plastic Pipe Fittings Mold for about years, and have become the leading enterprise in the industry. This enables us to introduce and operate a complete set of production equipment, and achieve intelligentization and standardization.
• Our company strives to produce high-quality products by establishing a professional production team of high quality. During the production, our team members focus on our own duties and operate efficiently.
• Since the establishment, our sales network has been continuously expanding to where our sales service is highly appraised by customers at home and abroad. In future, we would like to establish our marketing network overseas and expand the business further.
Spark Mould's Plastic Pipe Fittings Mold are safe, practical and quality-reliable. Please contact us as soon as possible if you need it.
