Oem & Odmpvc Pipe Fitting Mold for Industry
Product details of the pvc pipe fitting mold
Quick Detail
Spark Mould pvc pipe fitting mold is produced by purchasing advanced machines for production. It is not known that pvc pipe fitting mold from Spark Mould Technology Co., Ltd. have exceeded the performance and quality of many big names. Various in function and wide in application, the pvc pipe fitting mold can be used in many industries and fields. The product has won the common recognition since its wide application prospects have been praised by many customers.
Product Introduction
In order to know pvc pipe fitting mold better, Spark Mould will show you the specific details in the following section.
Foldable Core Pulling Mechanism 1
The foldable core is a very representative mold slider mechanism, mainly for the internal thread or annular boss of the plastic part. We designed 9 exquisite parts to combine the foldable core. The contraction and expansion of the slider are achieved through the control of the oil cylinder.
Foldable Core Pulling Mechanism 2

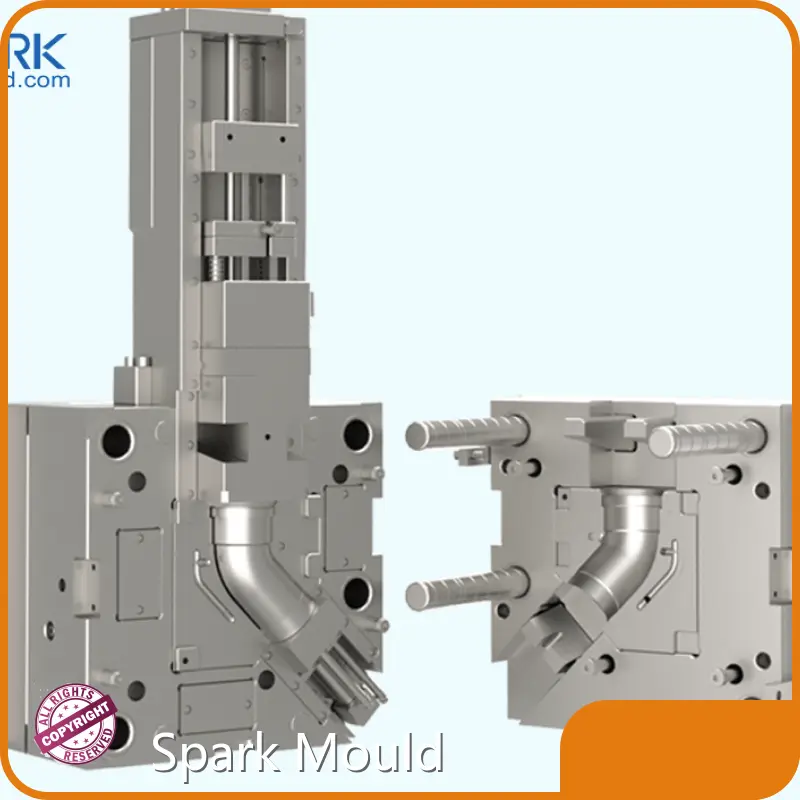

The core-pulling structure of this 45-degree elbow is cleverly designed, consisting of two precise arc blocks and two guide rails. The mechanism is controlled by the oil cylinder, allowing the arc block to move flexibly along the guide rails. The processing accuracy of the arc slider needs to be very high because the inside of the pipe fitting is smooth and curved.
Mold Trial Video
During the product ejection process, the slide at the O ring shrinks first. Then it is separated from the product along with the slide inside the elbow.
Company Introduction
Spark Mould Technology Co., Ltd. has earned a wealth of expertise in the production of pvc pipe fitting mold. Our ability in R&D and manufacture has made us an expert. We have people coming from a diverse set of experiences and backgrounds. This empowers us to deliver outstanding results for our customers with their industry know-how. Our goal is to be the leading pvc pipe fitting mold manufacturer. Check it!
If you want to know more relevant product information, feel free to contact us. We are dedicated to serving you.
