Hot Sale Fitting Mould Best Supplier for Sale

Product details of the fitting mould

Product Introduction

Spark Mould fitting mould is designed by the experienced staff who has many years of experiences in designing. The product is user-friendly and has long-lasting performance. Spark Mould Technology Co., Ltd. believes that our products can have a place in the world.

Injection Mold Structure

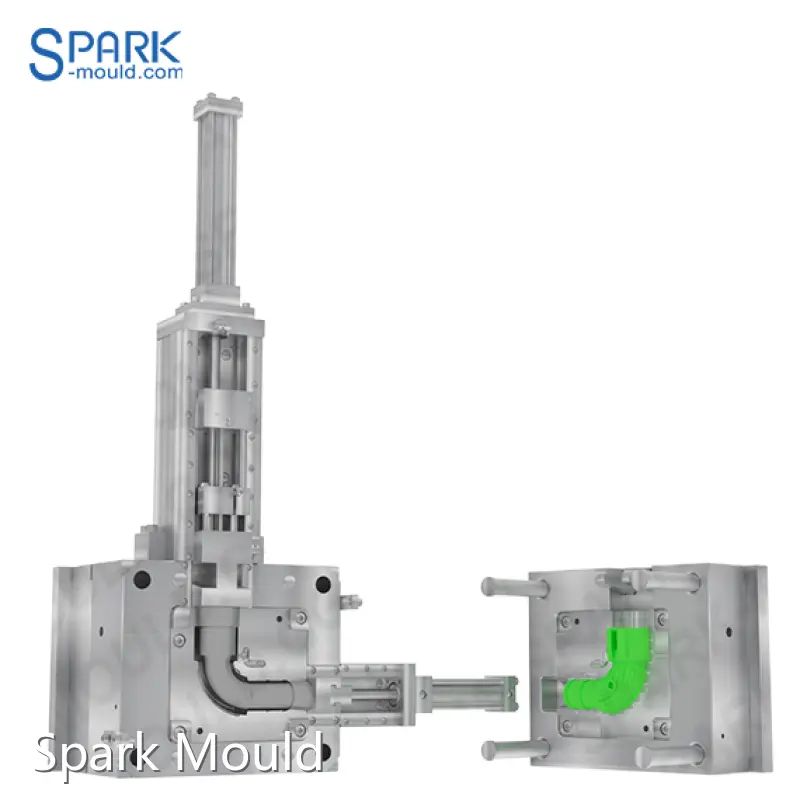

The core of this 90-degree quick connector injection mold is the foldable core mechanism. Its processing and debugging are somewhat difficult. The basic structure of the foldable core is shown in the figure below. The whole mold has two sets of core pulling mechanisms, which are controlled by two hydraulic cylinders respectively.

Hydraulic side core pulling mechanism

Using pressure oil as the power, a special core pulling hydraulic cylinder is configured on the mold, and the piston of the hydraulic cylinder moves back and forth to achieve lateral parting, core pulling and resetting. The action is relatively stable, the pulling force is large, the core pulling distance is long, and the time sequence of core pulling can be freely set according to needs.

Company Advantage

• Spark Mould has sales service centers in multiple cities in the country. This enables us to promptly and efficiently provide consumers with quality products and services.
• We have been dedicated to the manufacturing of Plastic Pipe Fittings Mold for about years, and have become the leading enterprise in the industry. This enables us to introduce and operate a complete set of production equipment, and achieve intelligentization and standardization.
• Spark Mould has a group of experienced employees who are full of vigor, ideals, and courage.
Hello, welcome to this site! If you have any interest in Spark Mould's products or services, you can contact us directly. We are committed to providing you with professional and efficient services!
