Molde de codo roscado hembra de 90 grados de PVC de 4 cavidades

Female threaded elbows can be tightened manually or mechanically without additional tools. They enable quick and reliable pipe connections. And threaded elbows provide better sealing and pressure resistance. FPT elbows (Female pipe threads) are designed to strict tolerances. Ensure seamless compatibility with pipes and fittings.

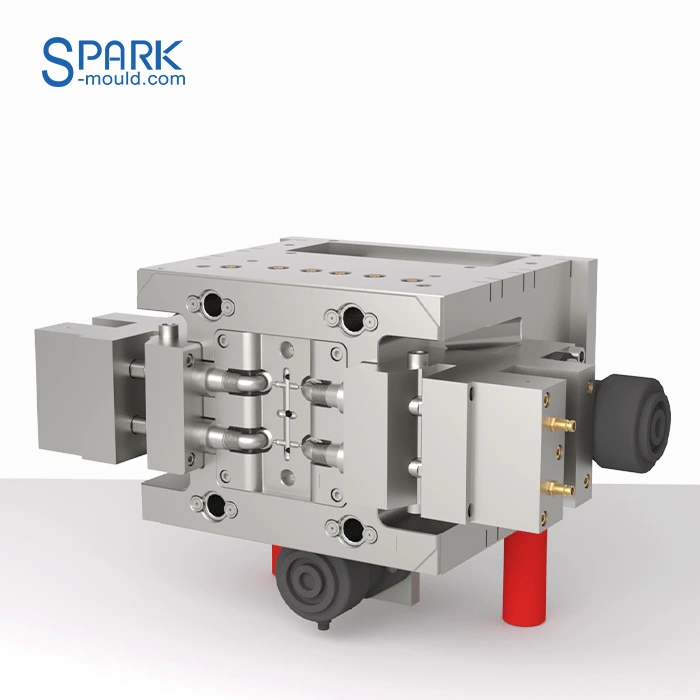

This set of 90 degree female threaded elbow mold has 3 design highlights.

NO.1: The "step-by-step" slider guide groove is that the sliders on both sides move in two steps.

NO.2: The automatic unscrewing thread mechanism on the side of the mold loosens the threaded core on the side to separate it from the product

NO.3: The automatic unscrewing thread mechanism under the mold uses a planetary gear structure to control the 4 threaded cores.

As shown in the video on the right. The movement process of this set of 90 degree female threaded elbow mold is divided into 4 steps.

Step 1: During the opening of the mold, the sliders on both sides of the movable mold are affected by the guide groove and retreat a short distance to leave space for the threaded core.

Step 2: The unscrewing threaded mechanism on both sides is started to separate the threaded core from the product.

Step 3: Affected by the guide groove, the slider groups on both sides of the mold retreat again to pull out the entire core.

Step 4: The automatic unscrwing thread mechanism at the bottom is started to drive the 4 cores in the vertical direction to separate from the product.

Optimized for High-Volume Production

With 4 cavities, this mold significantly boosts production capacity, reducing cycle times and labor costs. Perfect for manufacturers needing to meet bulk orders for PVC elbow threaded components.

Precision-Engineered for Female Threads

Crafted to produce female thread elbows with industry-standard specifications. Ensures tight seals for female thread elbow components, critical for high-pressure systems.

Durable Construction for Longevity

Built with high-grade, wear-resistant steel, the mold withstands repeated use without compromising on precision. This durability translates to lower maintenance costs and extended operational lifespans.

Plumbing systems requiring PVC elbow threaded connections.

Industrial piping networks using threaded 90 degree elbow fittings.

Custom solutions for elbow with thread designs in agricultural or chemical industries.

As a key component of the piping system, the 90 degree female thread elbow has a stable market demand and a wide range of applications. Whether you are producing standard FPT elbow units or custom threaded parts, we can provide you with high-precision, long-life injection mold solutions. Contact Us Now for a quote or to discuss customization options  Let’s engineer success for your threaded fitting production!
